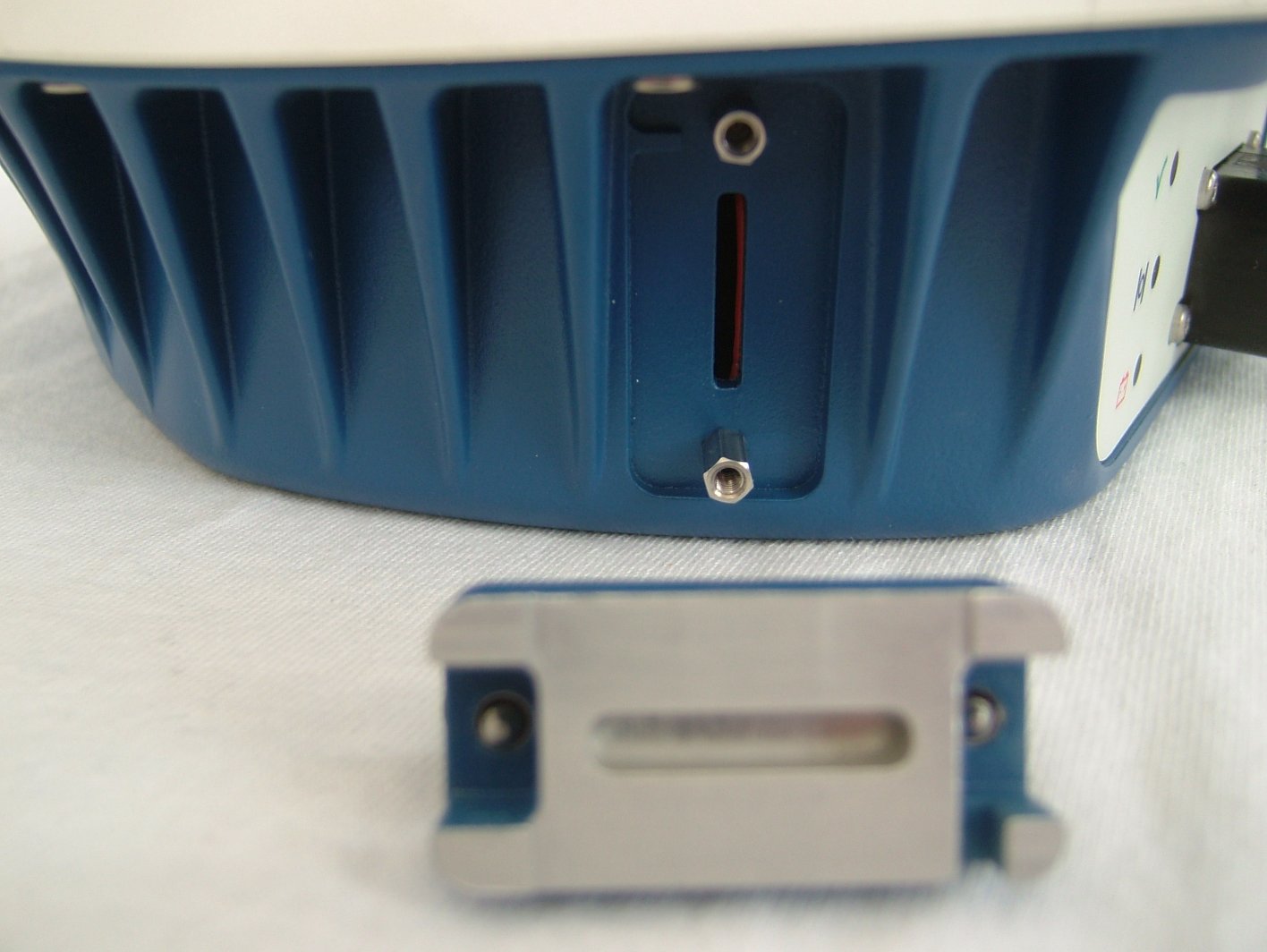

Frequencies: GPS L1+L2, GLONASS L1+L2, L-band.
Capabilities: Autonomous, WAAS, EGNOS, OmniStar VBS/XP/HP/G2, RTK Base or Rover.
Ports:
- COM1 = RS-232

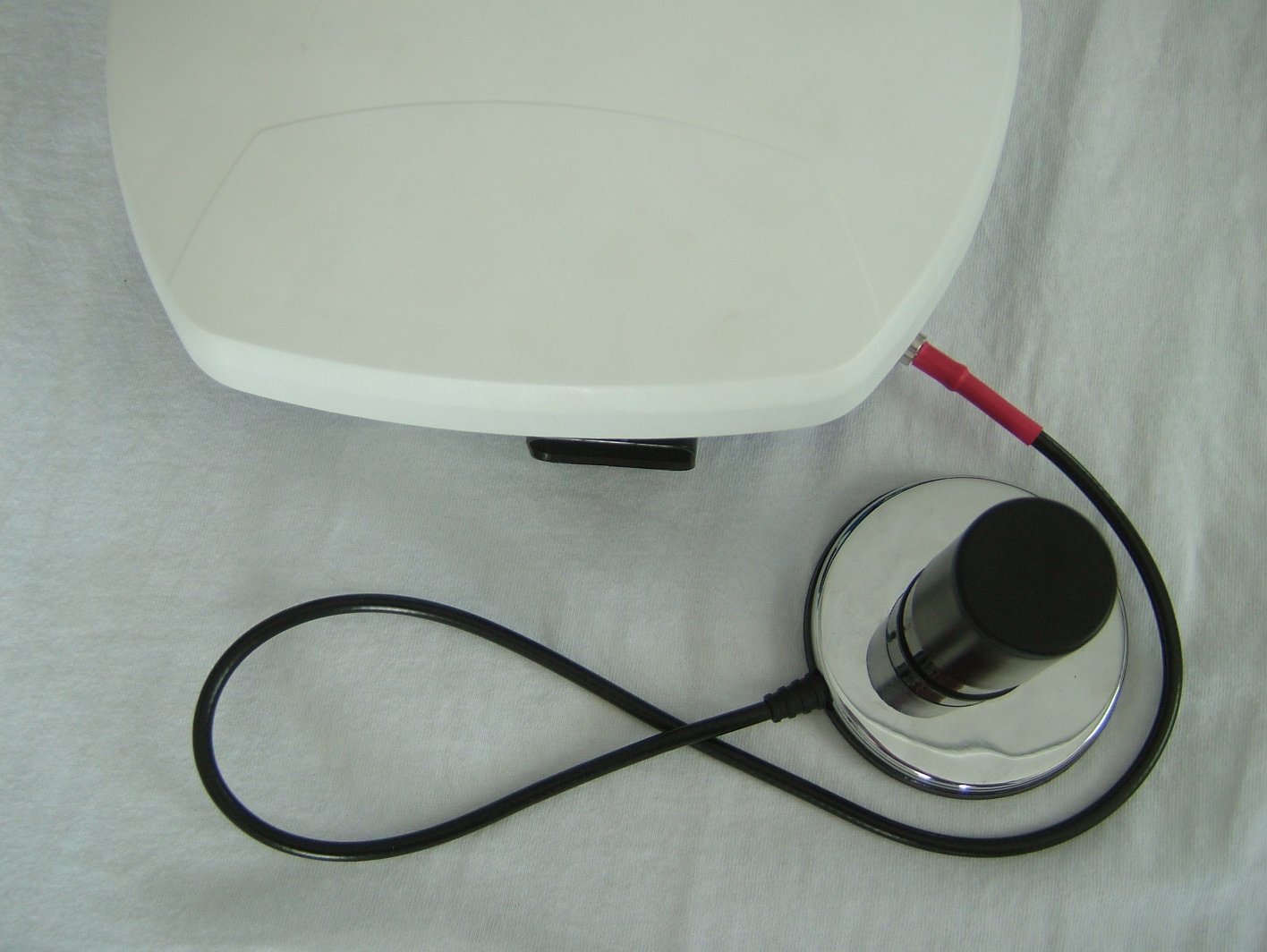

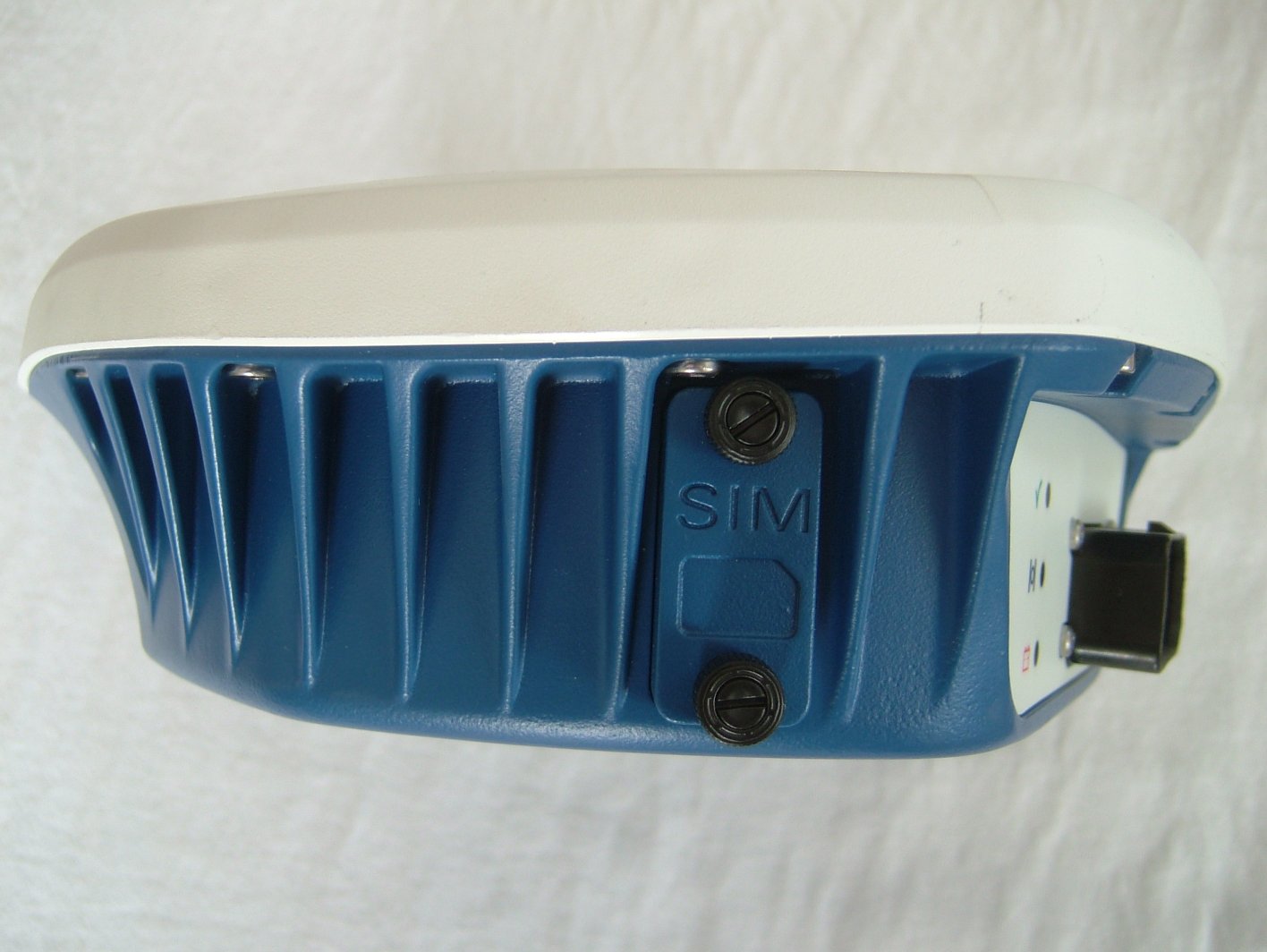

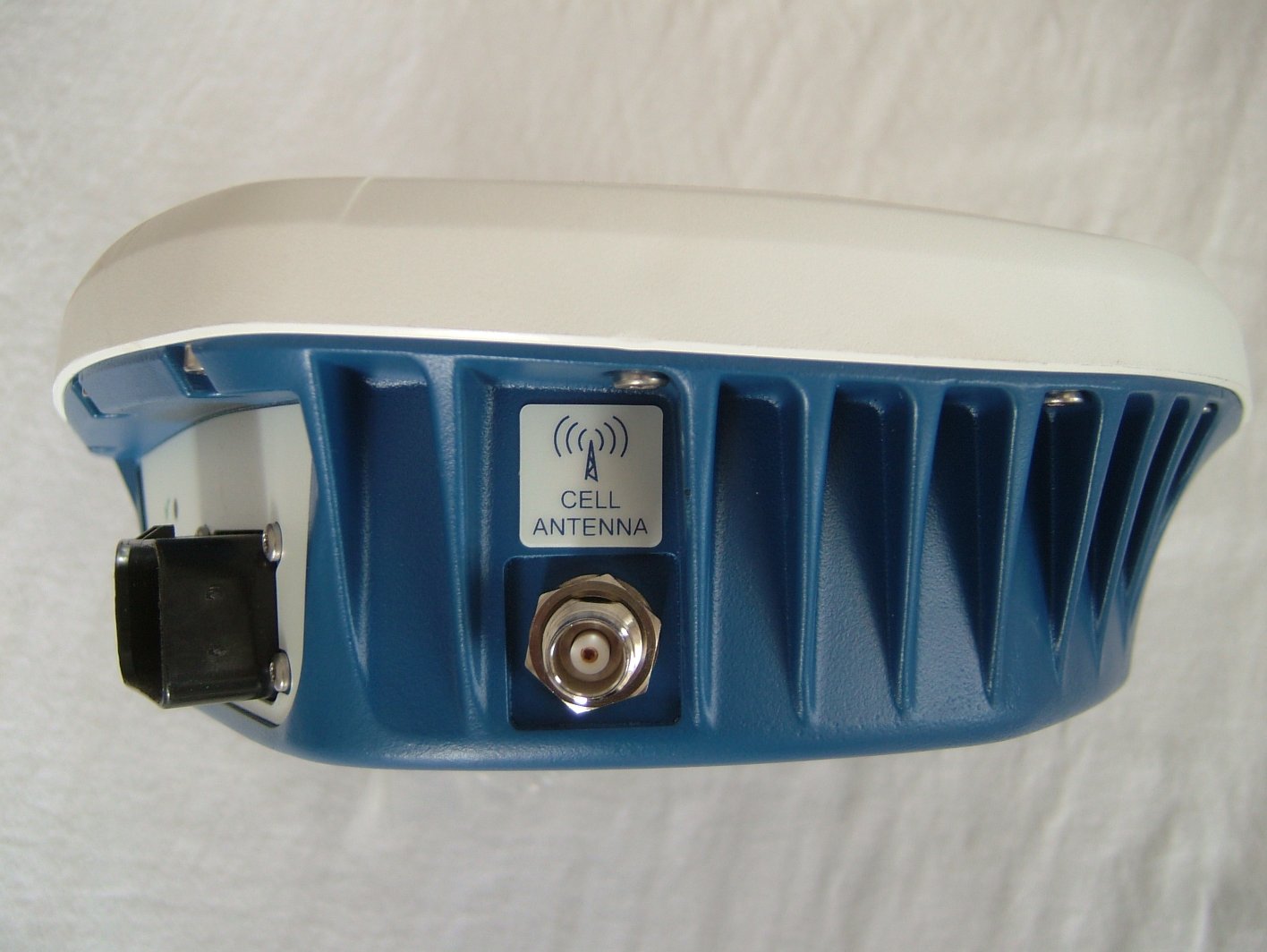

- COM2 = Internal Cellular Modem
- COM3 = Bluetooth Serial Port, Default PIN is 0000
- AUX = RS-232

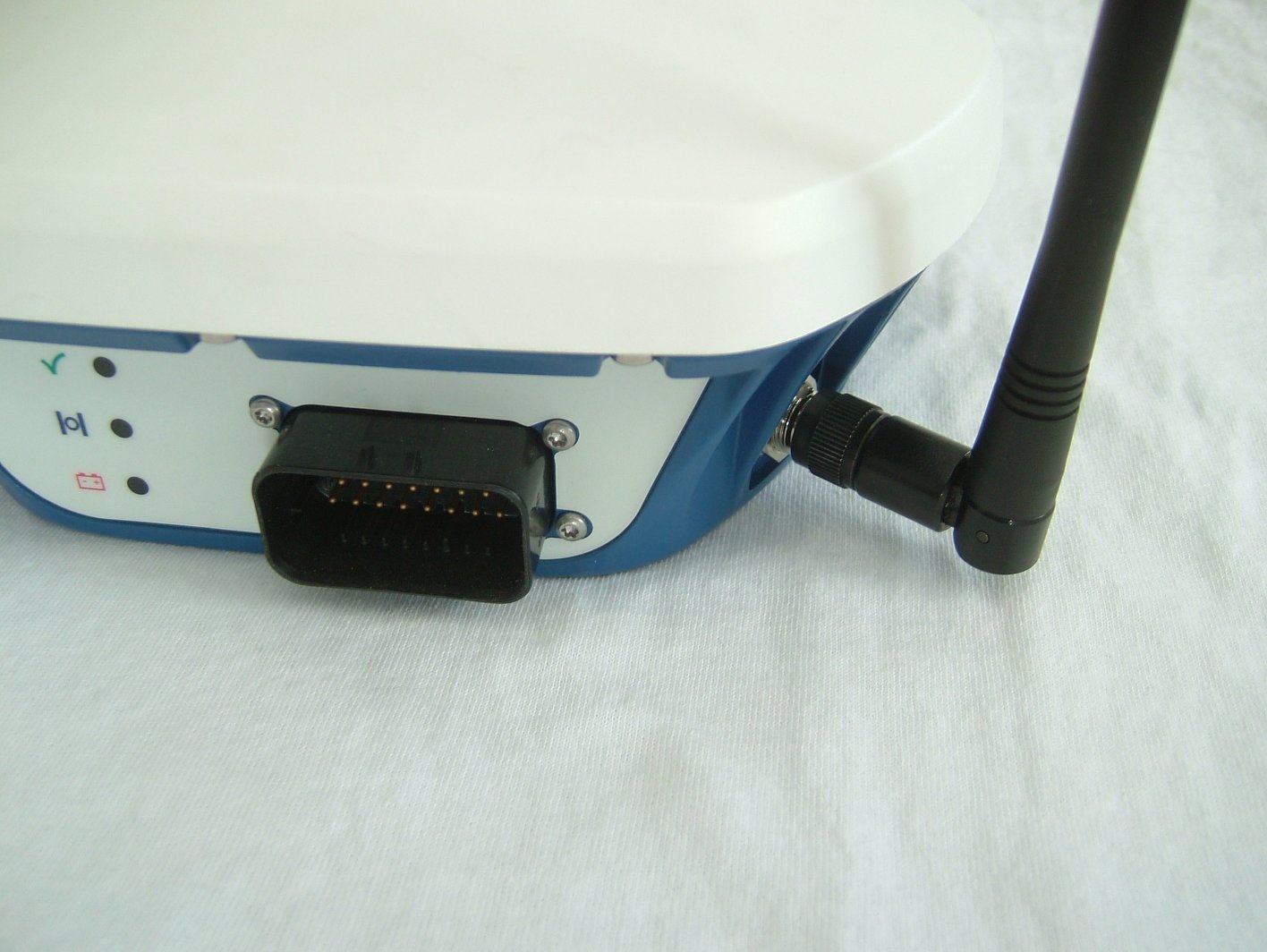

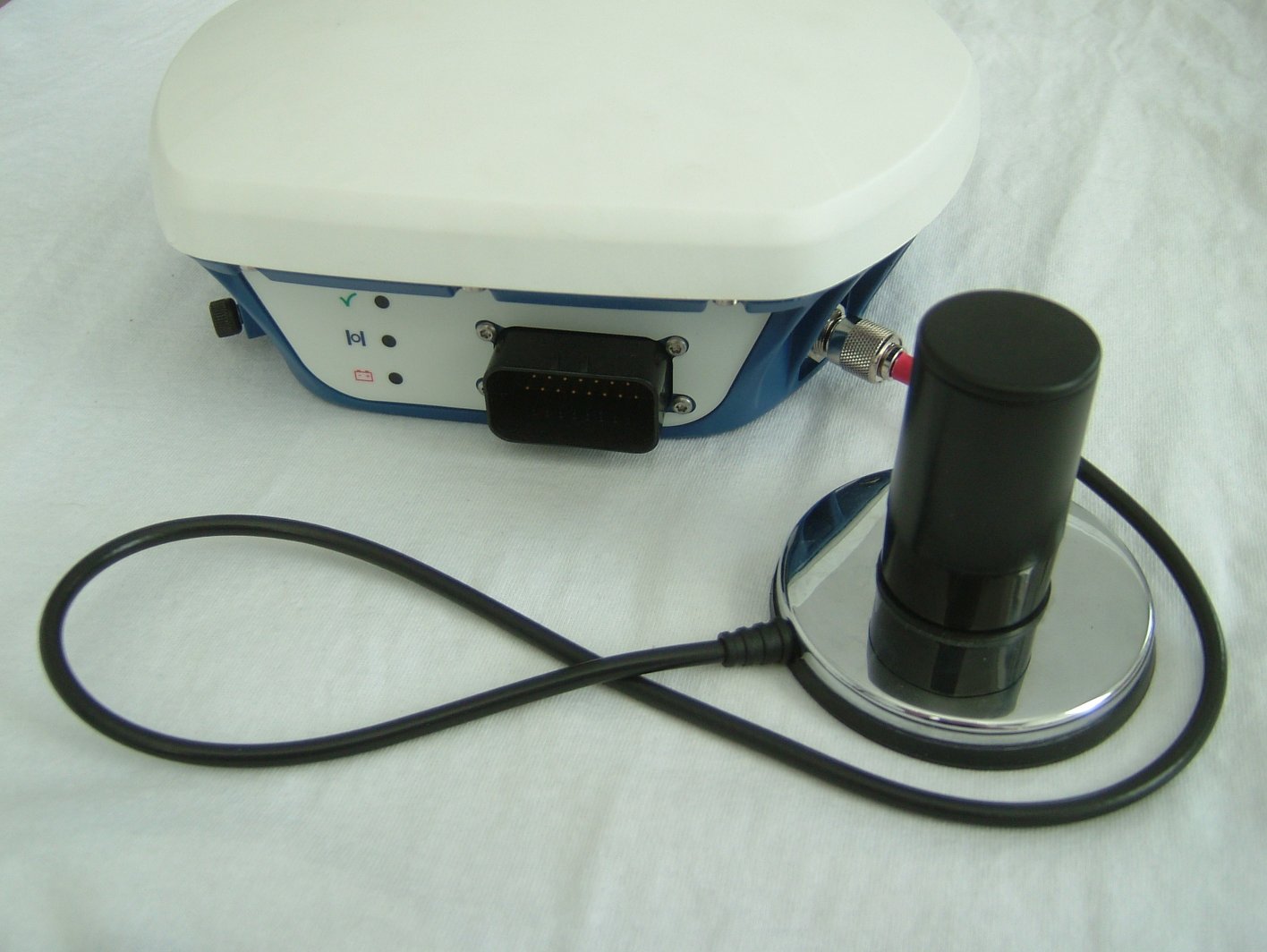

Connector: Tyco Ampseal, 23-pin, Black
Pinout:
1 - Power+ (red tinned wire)
2 - Power- (black tinned wire)
3 - CAN- (green tinned wire)
4 - CAN+ (yellow tinned wire)
5 - AUX TX, pin 2
6 - AUX RX, pin 3
7 - COM1 TX, pin 2
8 -
9 - Signal ground for Emulated Radar (white/black tinned wire)
10 -
11 -
12 -
13 -
14 - Chassis ground, connects to cable shields
15 - COM1 and COM2 signal ground, pin 5 on both DE-9 connectors
16 - MIK (white tinned wire)
17 - PPS (orange tinned wire)
18 - Emulated Radar (blue tinned wire)
19 - MODE (violet tinned wire)
20 -
21 -
22 -
23 - COM1 RX, pin 3
Last updated: March 24, 2012
