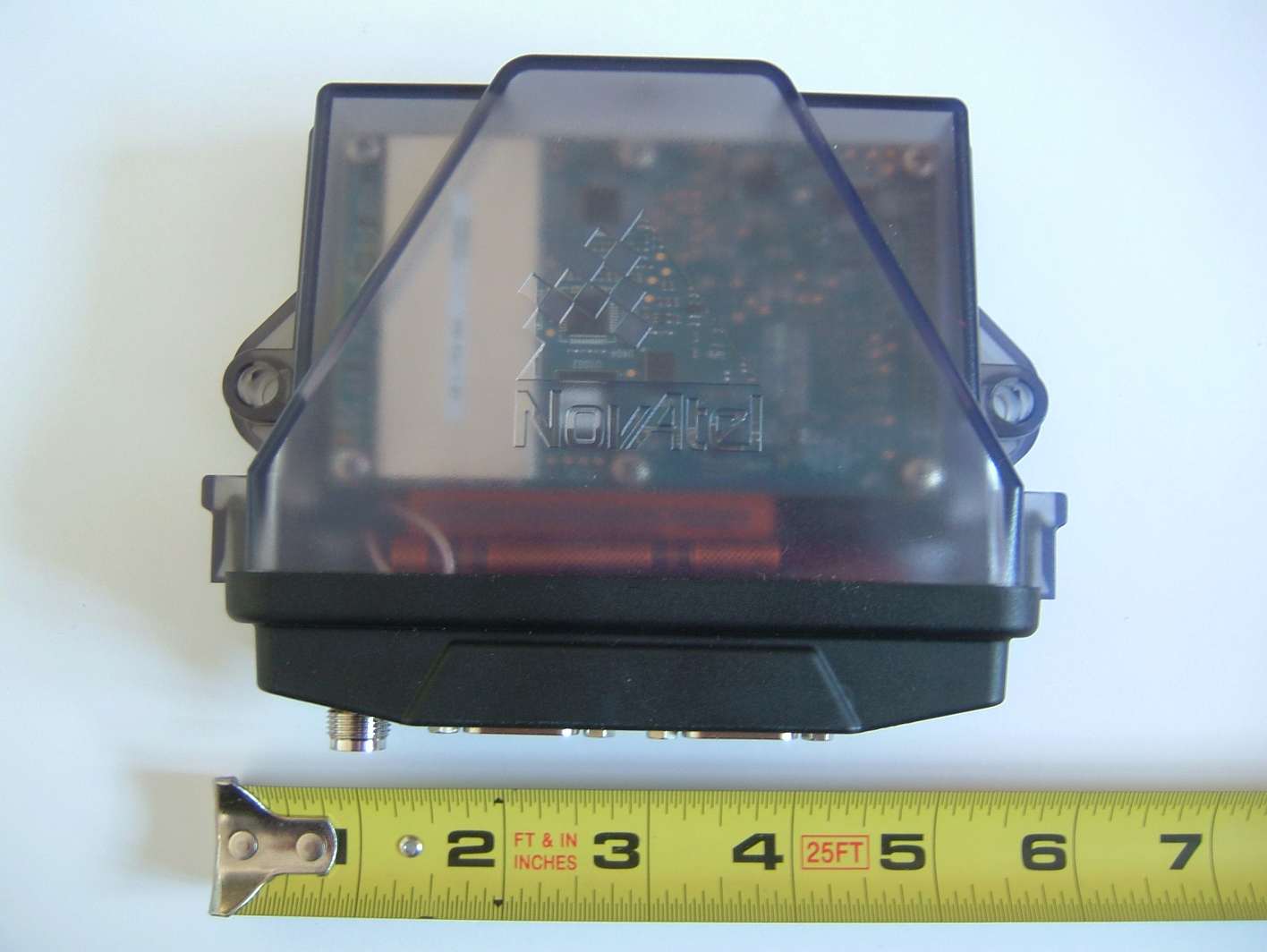

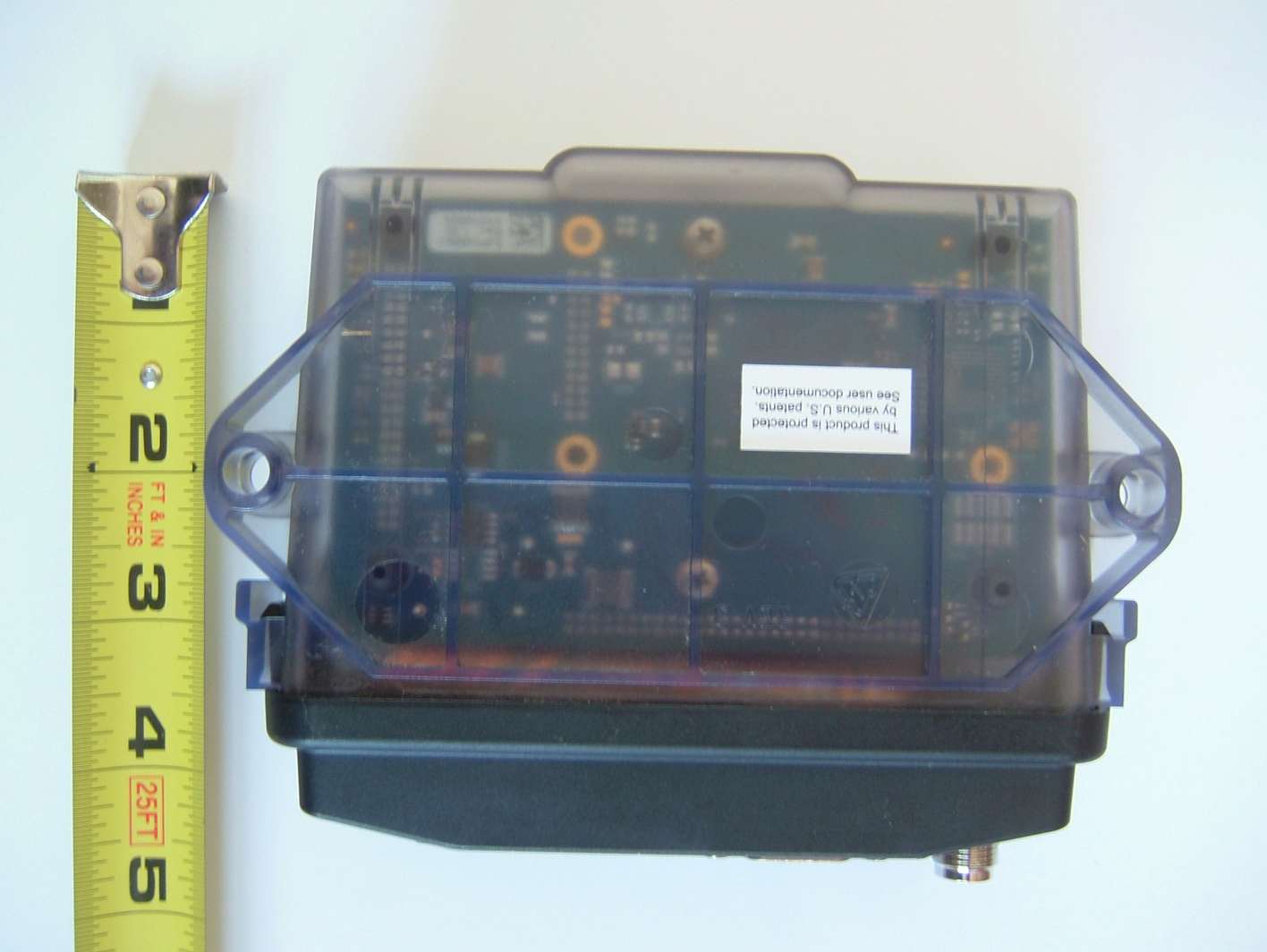

Lefebure.com / Documentation / NovAtel FlexPak6


Constellations: GPS, GLONASS, GALILEO, COMPASS.
Frequencies: L1, L2, L5, E1, E5a, E5b, L-band.

Capabilities: Autonomous, WAAS, EGNOS, OmniStar VBS/XP/HP/G2, RTK Base or Rover.

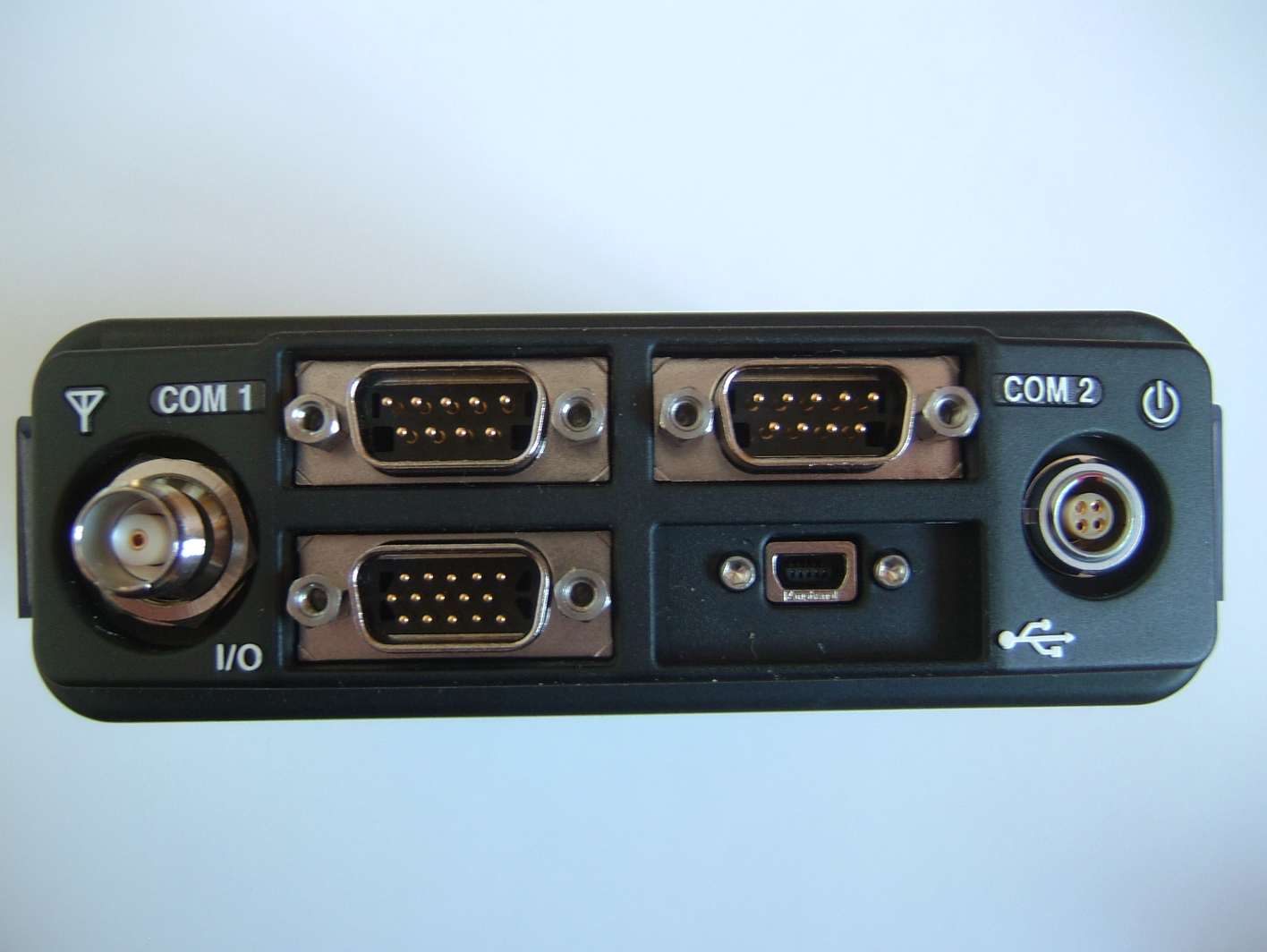

Ports:
- ANT = TNC female, 50 ohm nominal impedance, +5v DC 100 mA max
- PWR = 4 pin LEMO, +6 to +36v DC
- COM1 = DB9 male, RS-232
- COM2 = DB9 male, RS-232 or RS-422, power available
- I/O = DB-HD15 male, 10/100 Ethernet, CAN, PPS, Event, Error, Position Valid
- USB = mini-AB, three virtual COM ports

For pinouts and other specifications, please refer to page 115 in the OEM6 Family Installation and Operation User Manual
