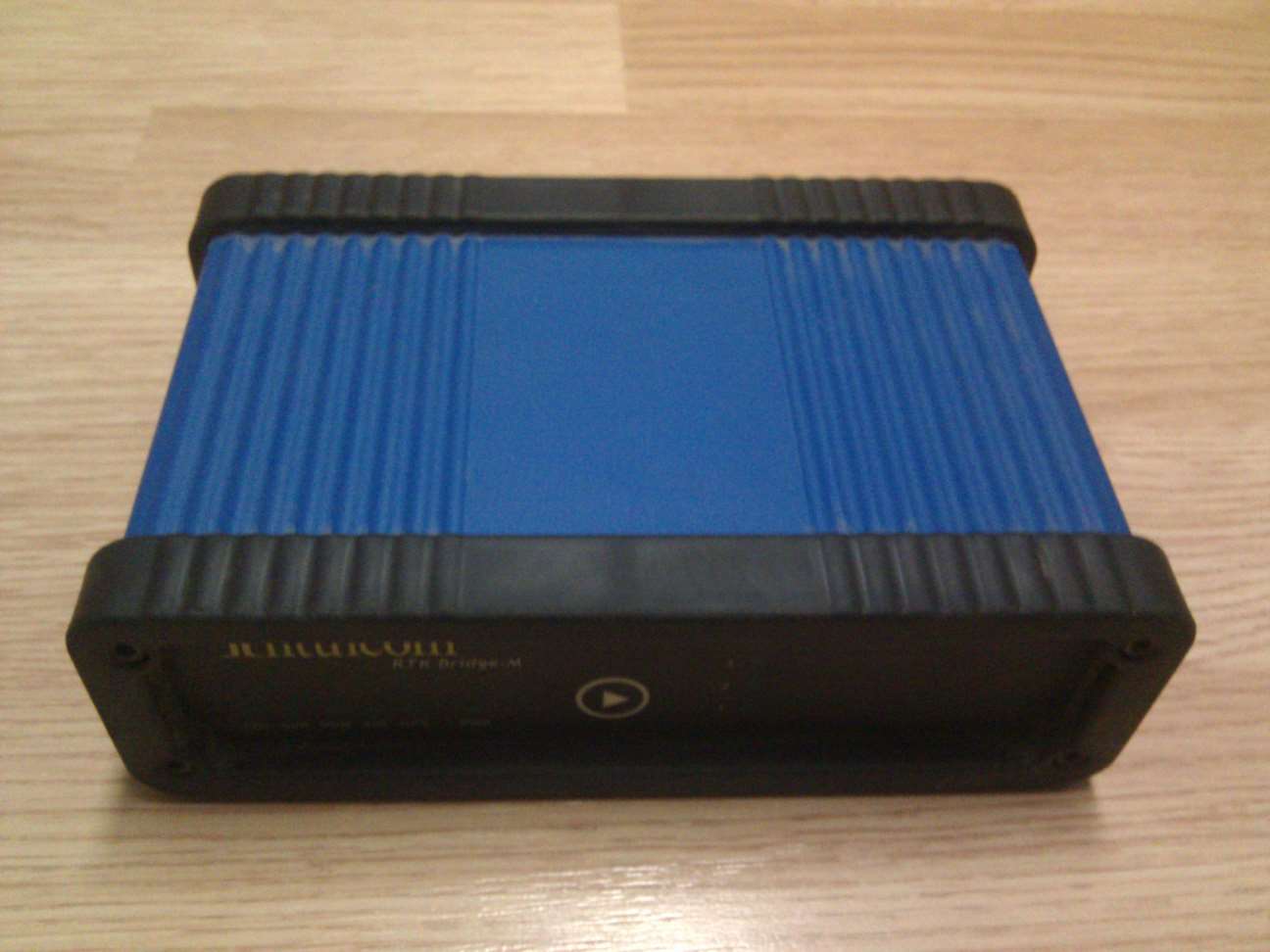

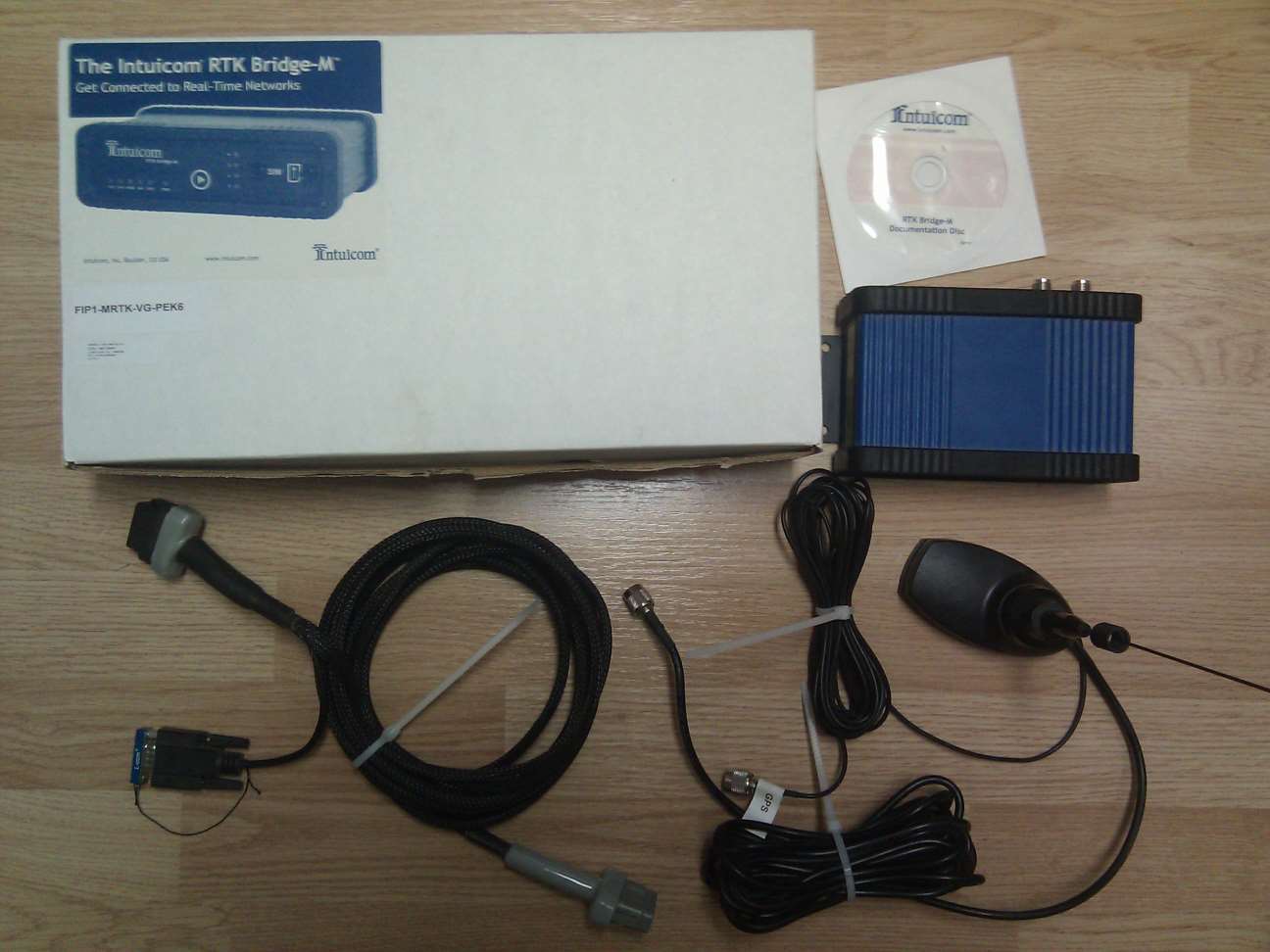

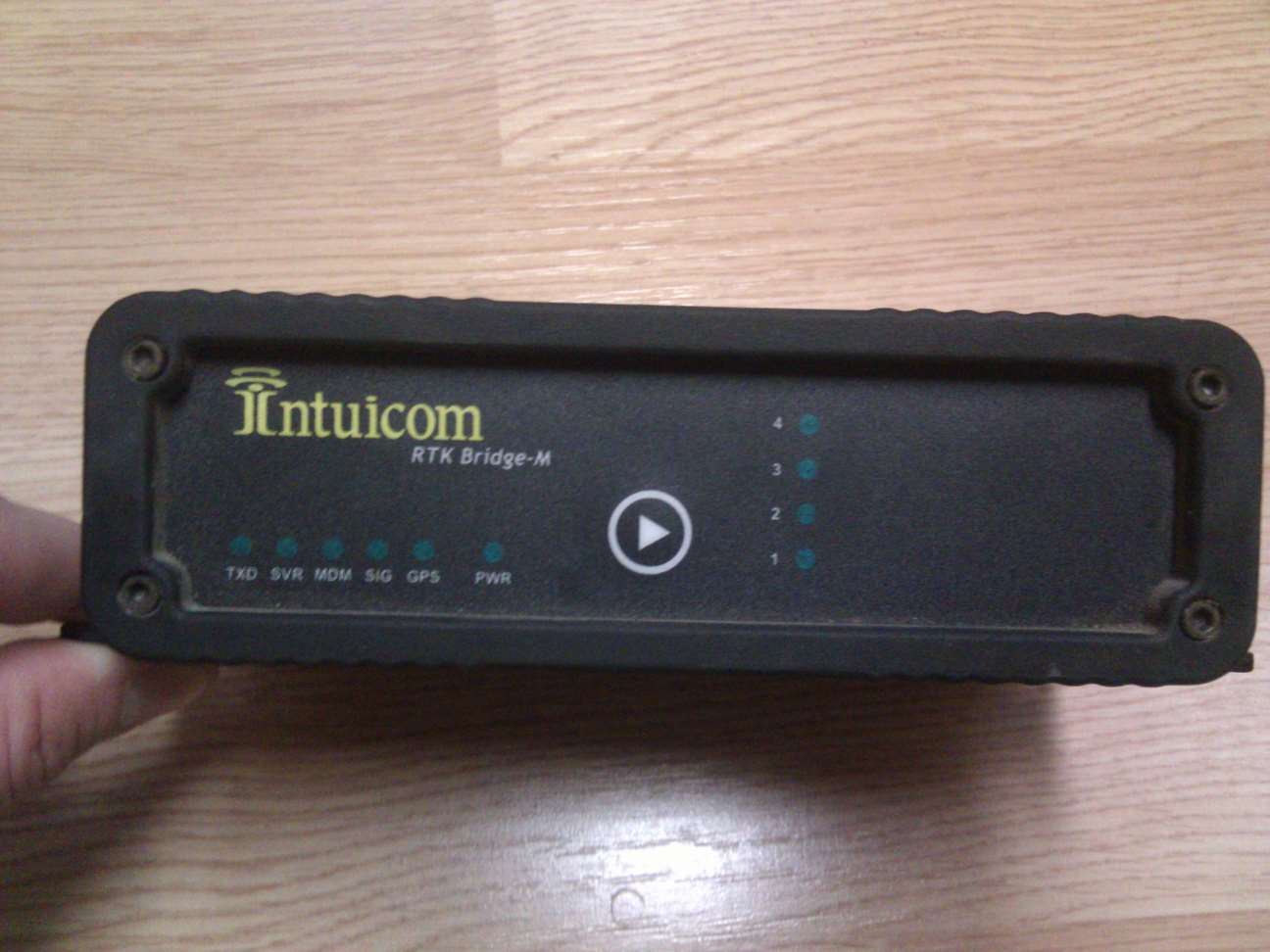

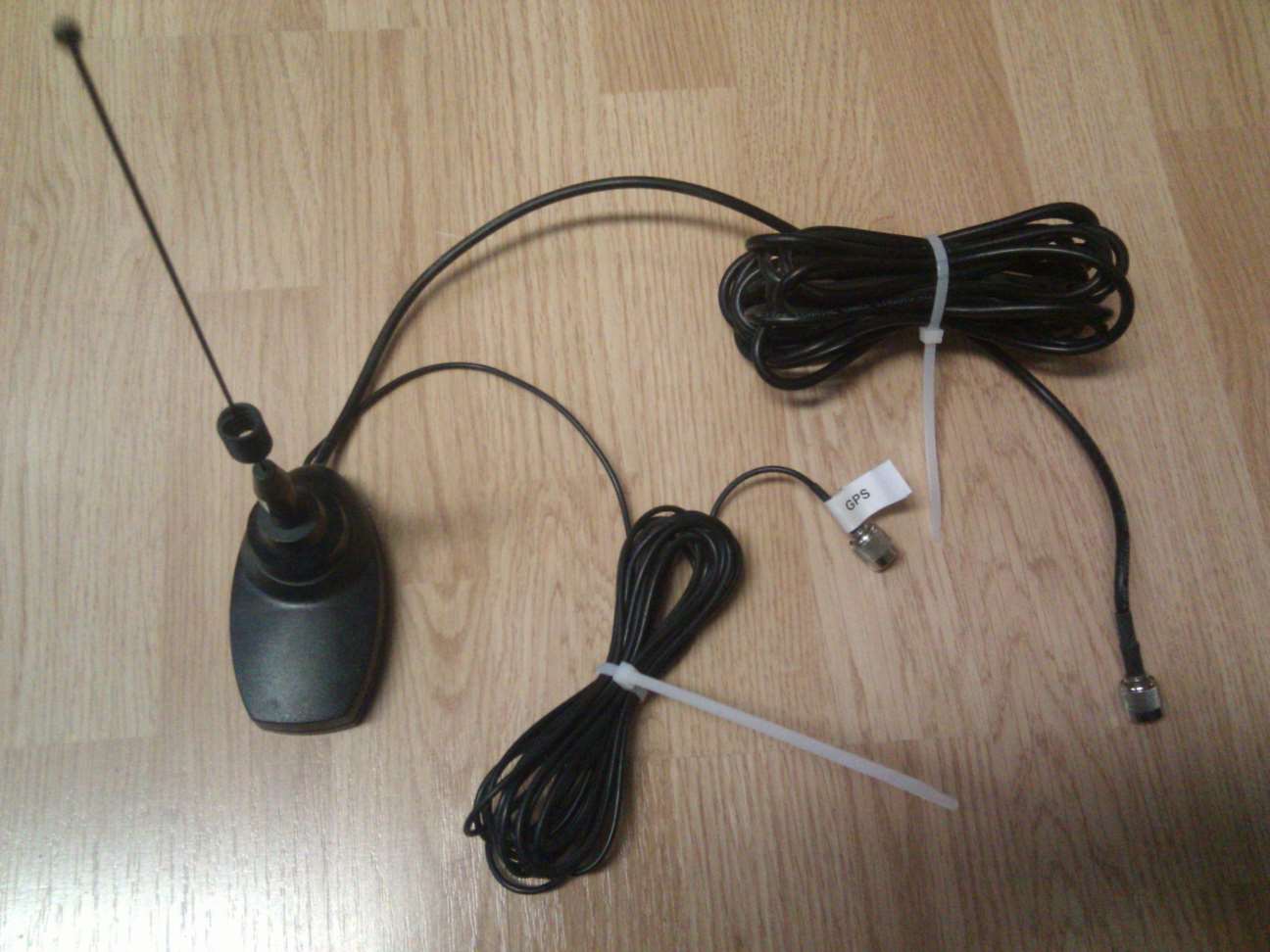

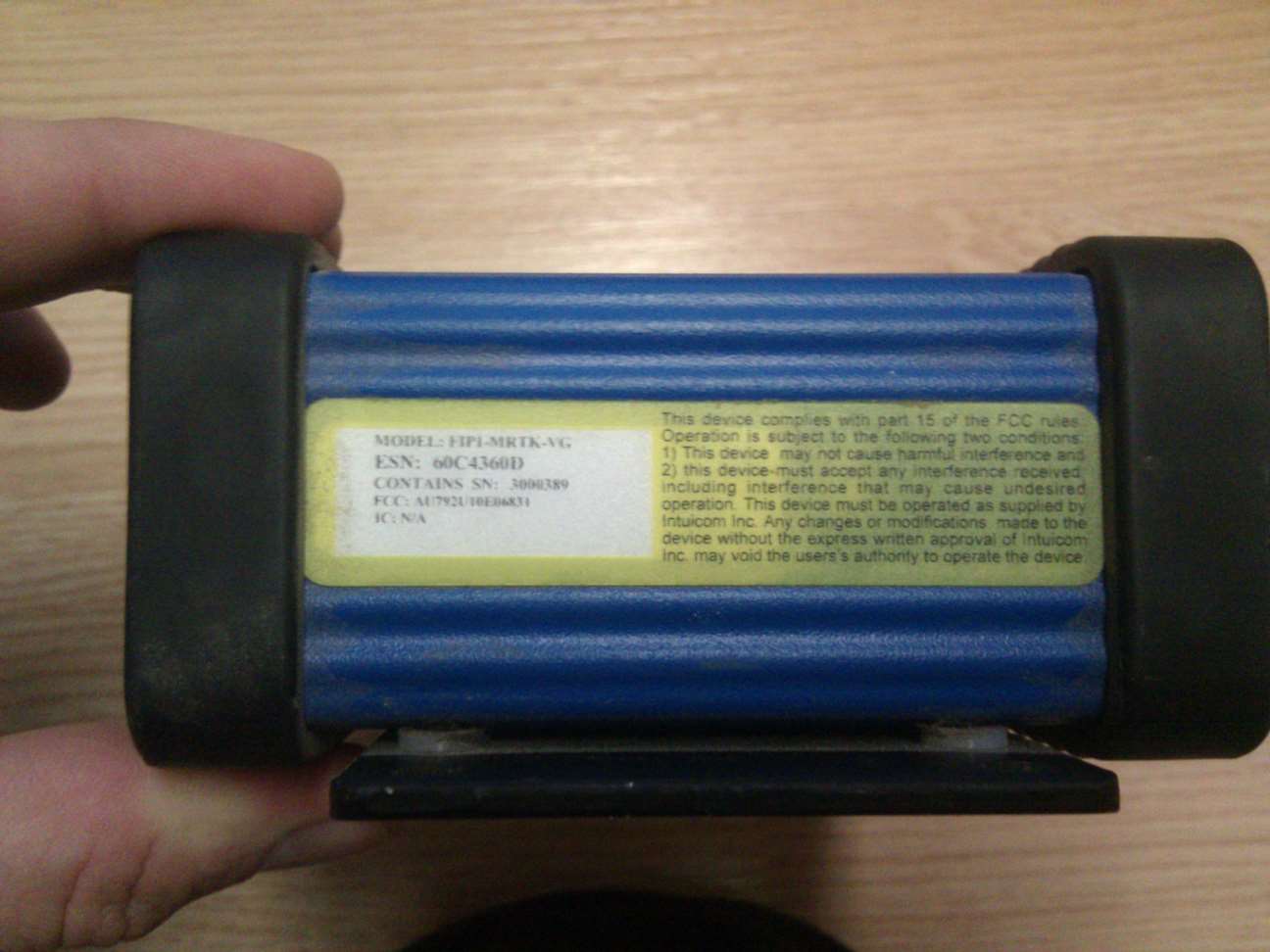

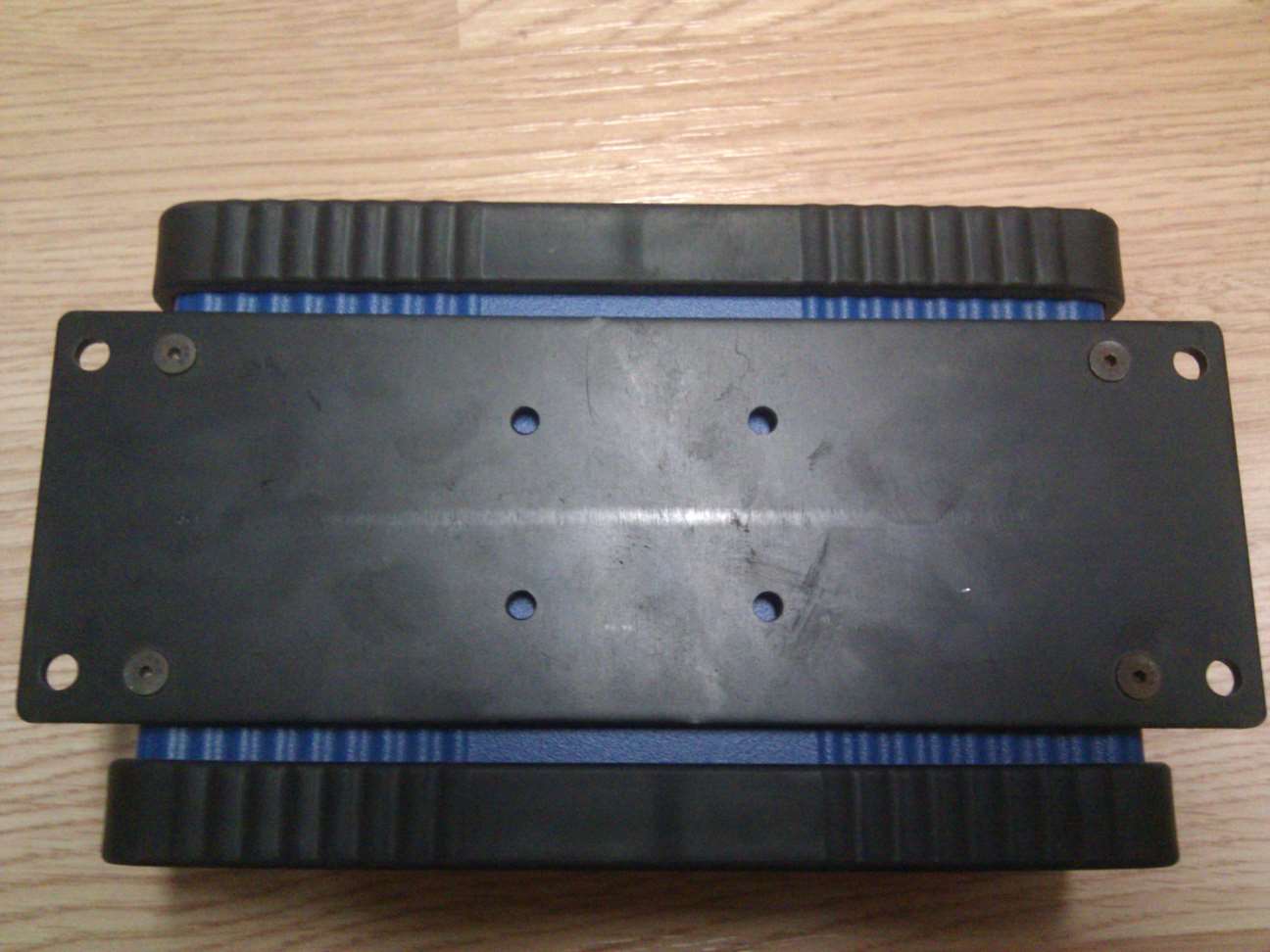

The Intuicom RTK Bridge-M is designed to connect to the Internet via cellular data link and stream RTK correction data to your GNSS receiver. It has a built in NTRIP client for this purpose. Additionally, it has an internal GPS receiver which can be used to determine the approximate location to let the CORS network know where you are and thus what data stream to receive, or the position can be determined by getting NMEA position data from your RTK GNSS receiver.
- Download Intuicom RTK Bridge-M Configuration Software v2.0

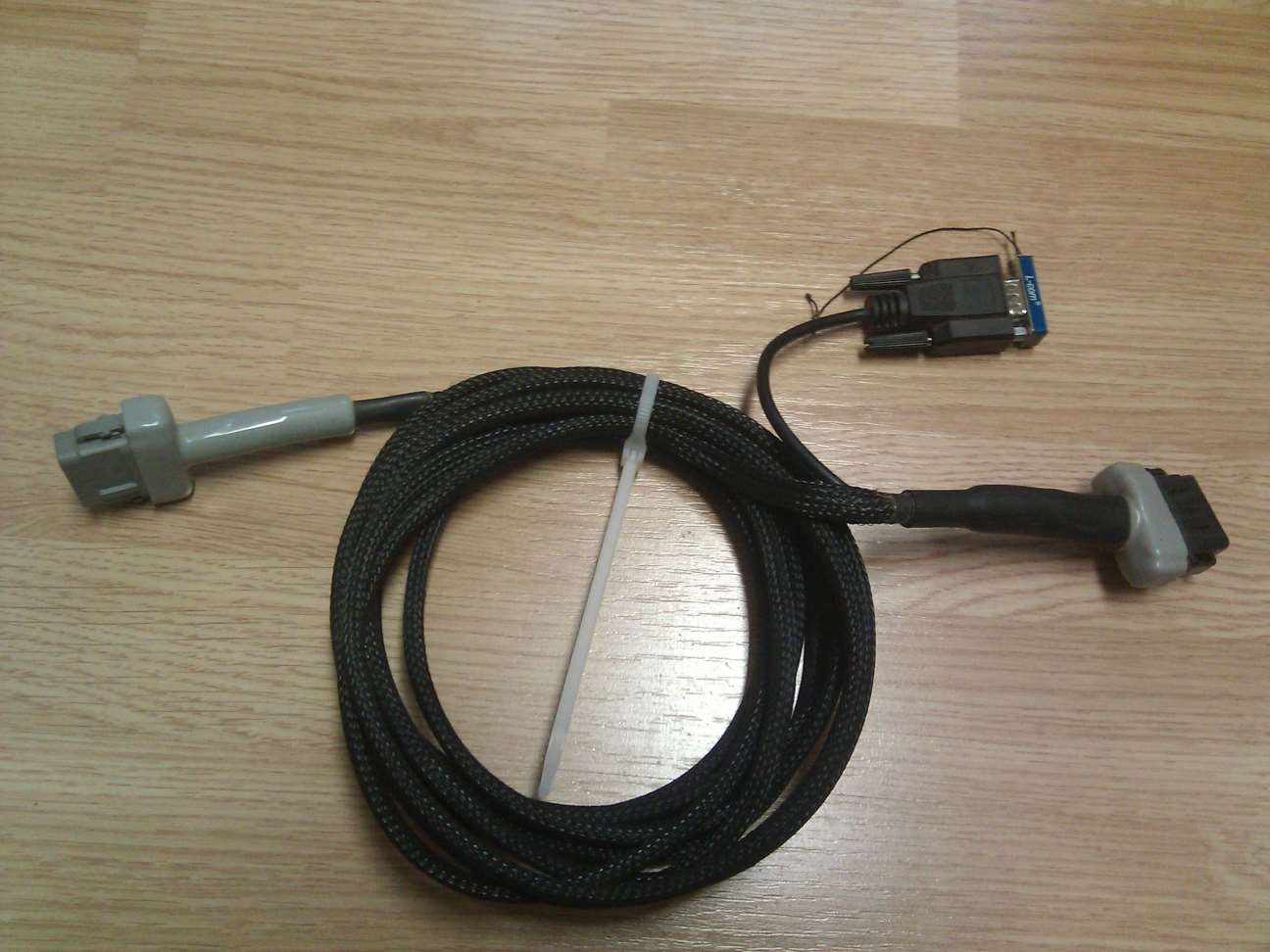

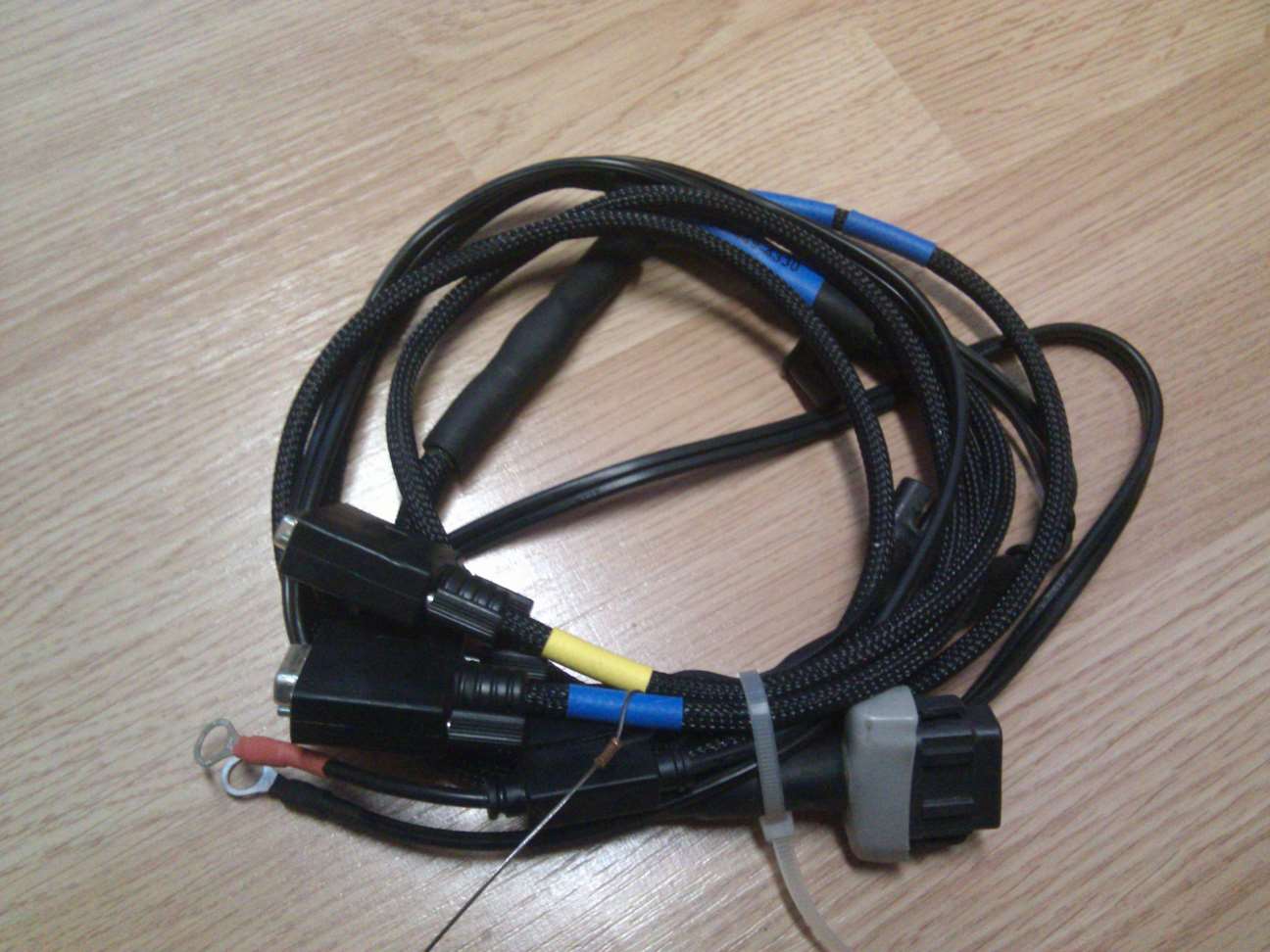

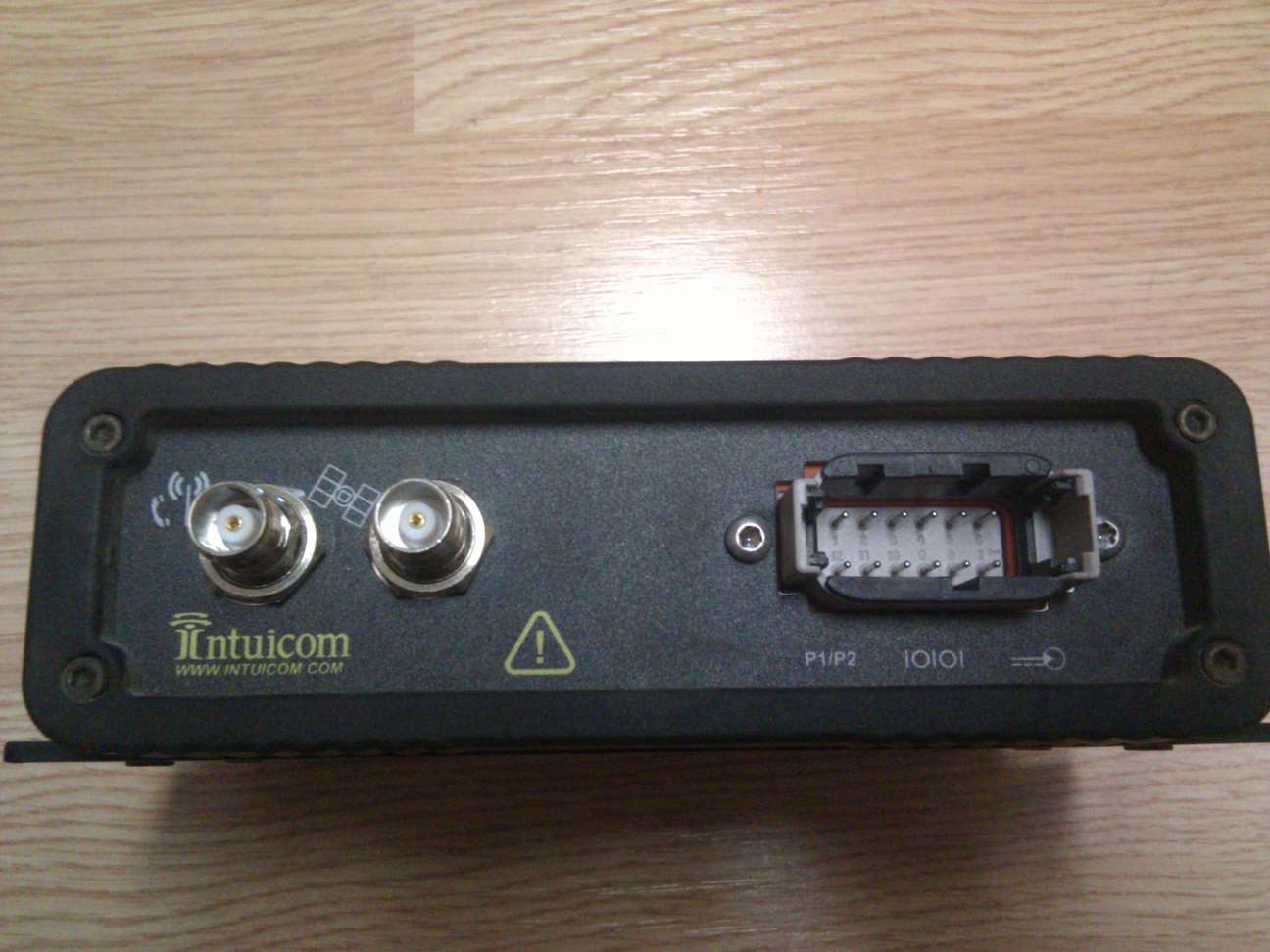

Wiring Pinouts

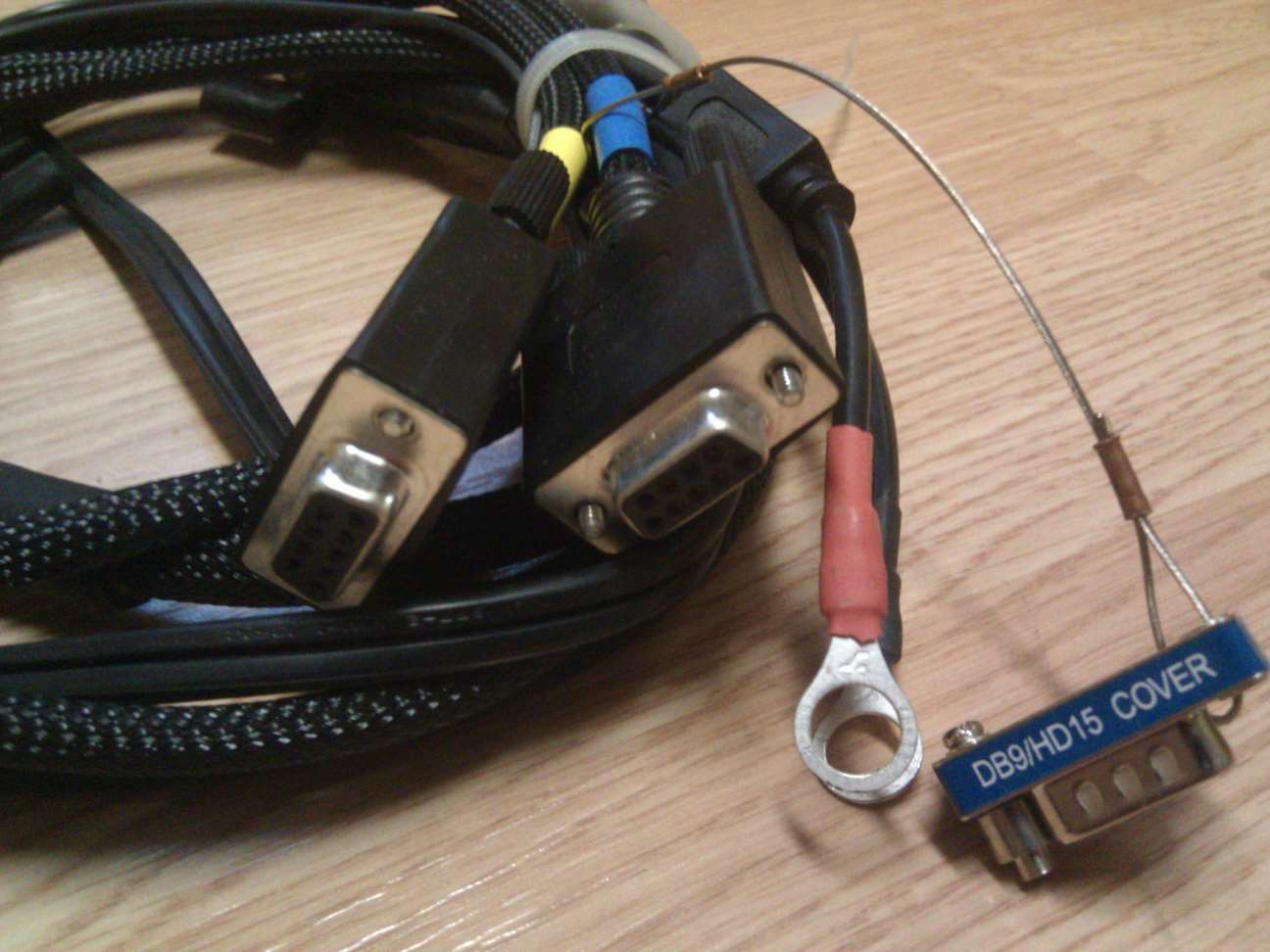

| Intuicom side, 12 pin Deutsch, Black | ||
| Pin | Color | Description |
| 1 | Red | +12v Power |
| 2 | Small Gray | Config TX, DE-9F pin 2 |
| 3 | Small Red | Config RX, DE-9F pin 3 |
| 4 | Green | Intuicom Data TX |
| 5 | White | Intuicom Data RX |
| 7 | Black | Ground |
| 9 | Brown | Intuicom Data Signal Ground |
| 11 | Small Yellow | Config Signal Ground, DE-9F pin 5 |

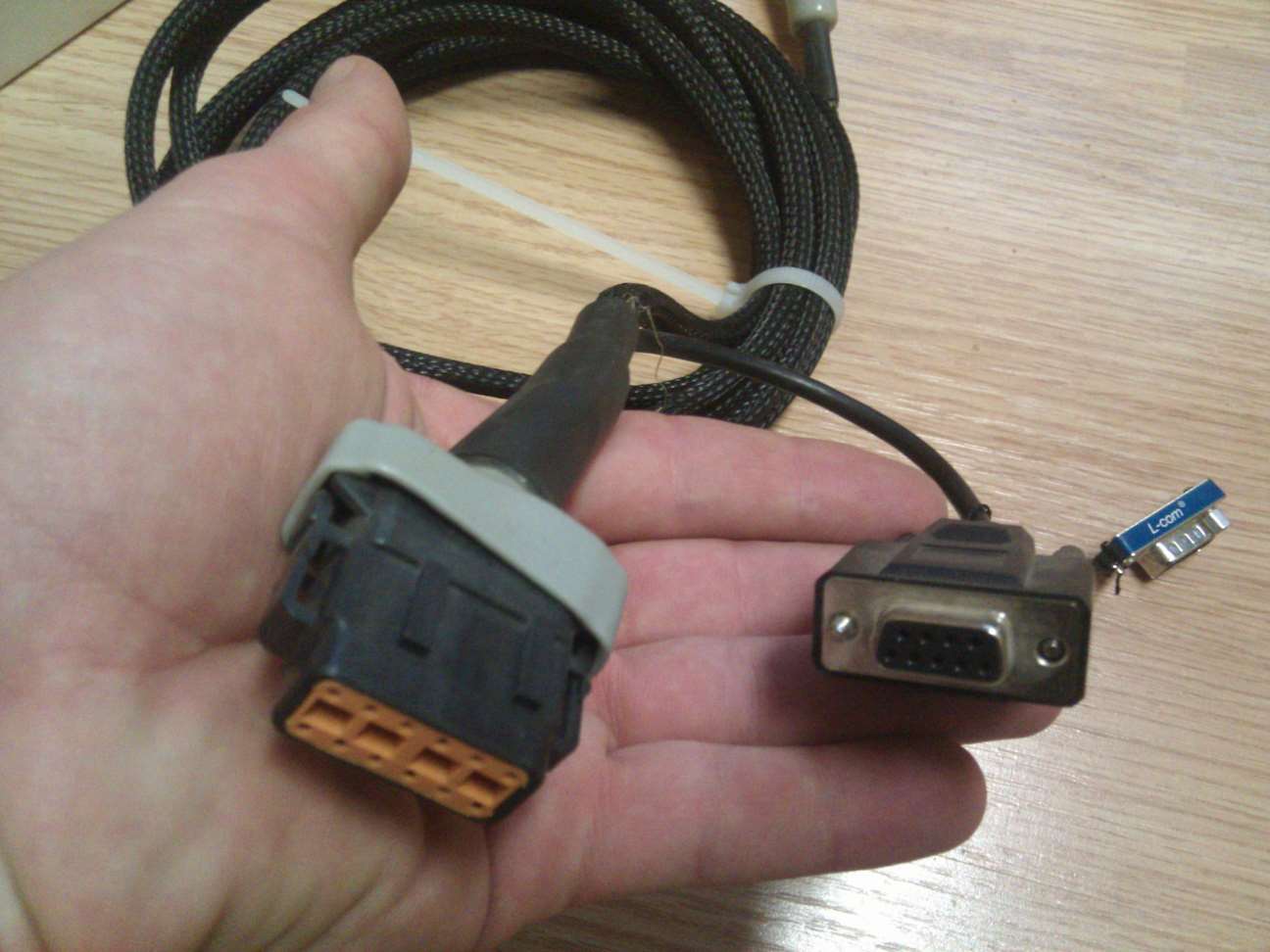

| Receiver side, 12 pin Deutsch, Gray Trimble 252/262/372, Port B | ||
| Pin | Color | Description |
| 5 | Brown | Signal Ground |
| 6 | White | Receiver Data TX |
| 8 | Green | Receiver Data RX |
| 10 | Red | +12v Power |
| 11 | Black | Ground |
| Receiver side, 12 pin Deutsch, Gray Trimble CFX-750/FMX-1000 | ||
| Pin | Color | Description |
| 3 | Green | Receiver Data RX |
| 4 | White | Receiver Data TX |
| 5 | Brown | Data Signal Ground |
| 8 | Black | Ground |
| 9 | Red | +12v Power |
Last updated: April 22, 2013
